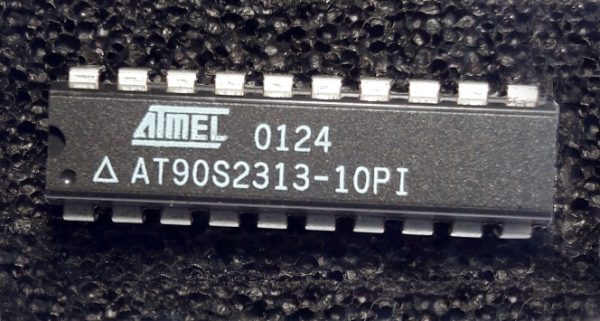

The AT90S2313-10PI microcontroller is a game-changing device for designers and developers looking to create efficient and reliable embedded systems. As a member of the Atmel AVR family, this microcontroller packs a powerful punch with its 8-bit RISC (Reduced Instruction Set Computing) architecture, making it ideal for real-time applications that require lightning-fast response times.
The AT90S2313-10PI features 2K bytes of in-system programmable flash memory that can be programmed and reprogrammed up to 1000 times. This feature makes updating and modifying program code and data storage easy, which can help to reduce development time and costs.
With 20 programmable input/output lines, this microcontroller can interface with a variety of external devices, including sensors, displays, and actuators. The microcontroller also includes 32 general-purpose working registers, providing fast and efficient data processing capabilities. Additionally, the AT90S2313-10PI features two 8-bit timers/counters, a programmable watchdog timer, and a built-in analog comparator, making it suitable for a wide range of embedded applications.
The AT90S2313-10PI is part of the Atmel AVR family and comes with a powerful instruction set that provides high processing speeds. It can operate at a clock speed of up to 10 MHz, allowing for efficient data processing and execution of instructions.
In addition, the AT90S2313-10PI includes a programmable serial USART (universal synchronous/asynchronous receiver/transmitter), which enables communication with other devices such as computers or other microcontrollers. This feature is particularly useful in applications where data needs to be transmitted over long distances or in noisy environments.
The AT90S2313-10PI is designed to operate in harsh environments and can withstand high levels of shock and vibration. It is also capable of operating in a wide range of temperatures, making it suitable for use in extreme environments.
The microcontroller boasts an array of peripherals, comprising of twin 8-bit timers/counters, a programmable watchdog timer, and an integrated analog comparator. The timers/counters are versatile and can function as time interval calculators or signal generators with customized frequencies. In the event of a program malfunction, the watchdog timer acts as a safety net by resetting the microcontroller. Additionally, the analog comparator aids in comparing analog signals and producing interrupts according to preset threshold values.
Atmel offers a wide range of software and hardware development tools that can be used to develop and debug applications based on the AT90S2313-10PI. The Atmel Studio Integrated Development Environment (IDE) provides a user-friendly interface for developing and debugging applications. In addition, Atmel offers a range of evaluation boards, programmers, and other development tools that can help streamline the development process.
With its low power consumption and compact size, the AT90S2313-10PI is perfect for embedded applications where space and power are limited. Its power-down and sleep modes further reduce power consumption when the device is not in use, making it ideal for battery-powered applications.
In conclusion, the AT90S2313-10PI microcontroller is a versatile and powerful device that is ideal for a wide range of embedded applications. Its advanced architecture, low power consumption, and ample memory make it an excellent choice for designers and developers looking to create cutting-edge embedded systems. With its high performance, ease of use, and reliability, the AT90S2313-10PI is the perfect solution for those who want to create efficient and reliable embedded systems that can operate in even the harshest environments.
Ethan Taylor –
The at90s2313-10pi microcontroller is a great device that has all the features I needed for my project. The programmable input/output lines and the built-in analog comparator were particularly useful. Highly recommended!
